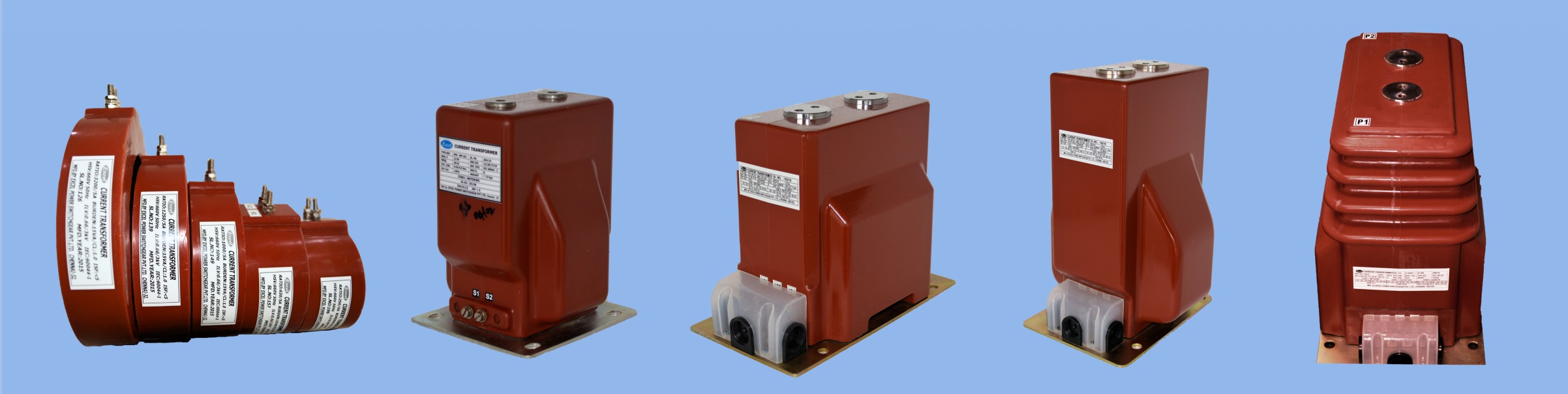

Features
Designed and Verified according to IEC 61869-2
Various standard product line
Suitable for tariff metering
Specialised in customised products
Compact and light weight
Convenient installation and replacement
High electrical and mechanical performance
No partial discharge at operating voltage
Reliable quality and long lasting durability
Casting epoxy resin body ensures high mechanical strength and insulation performance
Transparent and sealable secondary terminal cover as an option
Specification
Highest system voltage: 660V to 36kV
Rated primary current: 5A to 5000A
Rated secondary current: 1A / 5A
Rated accuracy class
- Metering: 0.2s, 0.2, 0.5, 1.0
- Protection: 5P, 10P
Rated short time thermal current: 75In to 50kA/ 1s to 3s
Rated frequency: 50Hz
Rated continuous thermal current: 120%, 150%, 200%

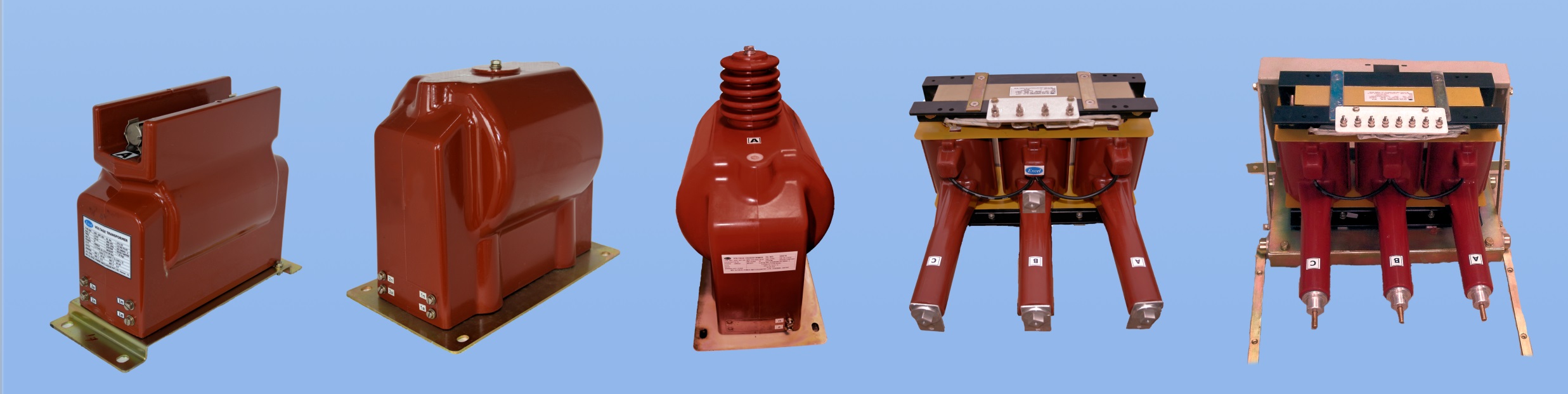

Voltage Transformer
Features
Designed and Verified according to IEC 61869-3
Various standard product line
Suitable for tariff metering
Specialised in customised products
Compact and light weight
Convenient installation and replacement
High electrical and mechanical performance
No partial discharge at operating voltage
Reliable quality and long lasting durability
Casting epoxy resin body ensures high mechanical strength and insulation performance
Transparent and sealable secondary terminal cover as an option
Specification
Highest system voltage: 660V to 36kV
Rated secondary voltage : 63.5V / 110V
Rated accuracy class
- Metering: 0.2, 0.5, 1.0
- Protection: 3P, 6P
Rated frequency: 50Hz
Rated voltage factor: 1.2 continuous and 1.5 for 30s
1.2 Continuous and 1.9 for 30s
1.2 Continuous and 1.9 for 8hrs
