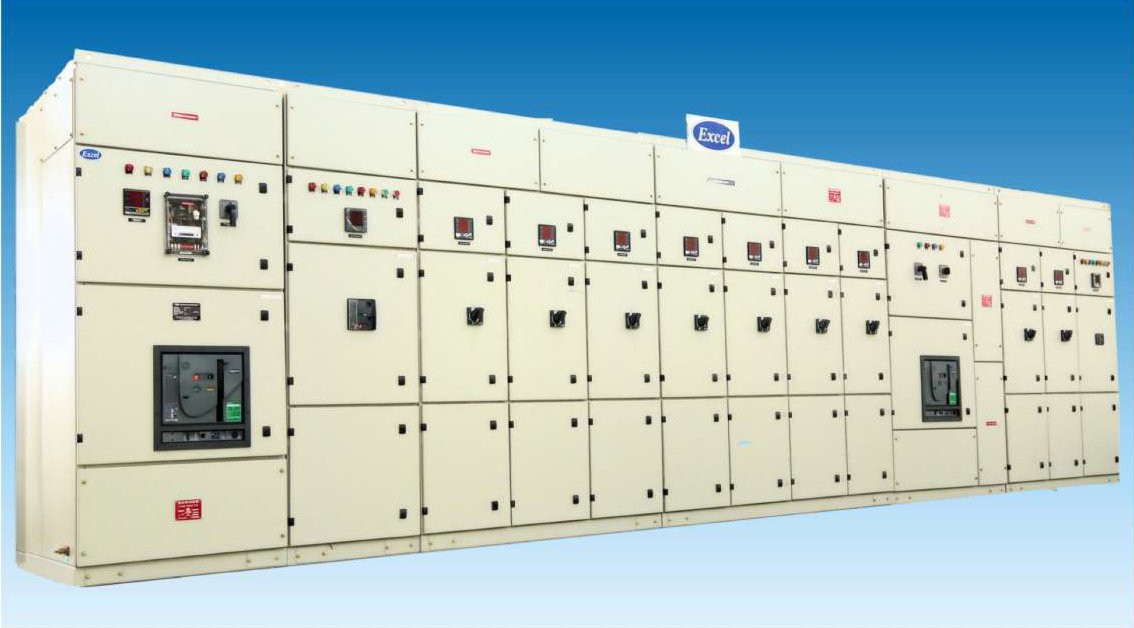

LV Panels

Features

  • Designed verified and factory assembled in according to IEC 61439
  • Modular / Semi-modular / Welded construction
  • Indoor / Outdoor installations available
  • Fixed / withdrawable module available
  • Constructed using powder coated sheet steel making it a highly reliable
  • Segregation up to form 4b in accordance with IEC 61439
  • High degree of protection up to IP55
  • Redundant and efficient ventilation system
  • Fully extensible / non-extensible options available
  • Suitable for top / bottom cable entry
  • Customised to meet any requirement
  • Available in floor mounted / free standing / wall mounting type
  • Safety

  • Fully designed to IEC 61439
  • No live parts exposed
  • The maximum safety can be achieved by form of separation according to IEC standards
  • Enclosure and all metal parts are earthed to protect against electric shock
  • Tool based accessibility to protect against inadvertent operation
  • Reliable and safe operation
